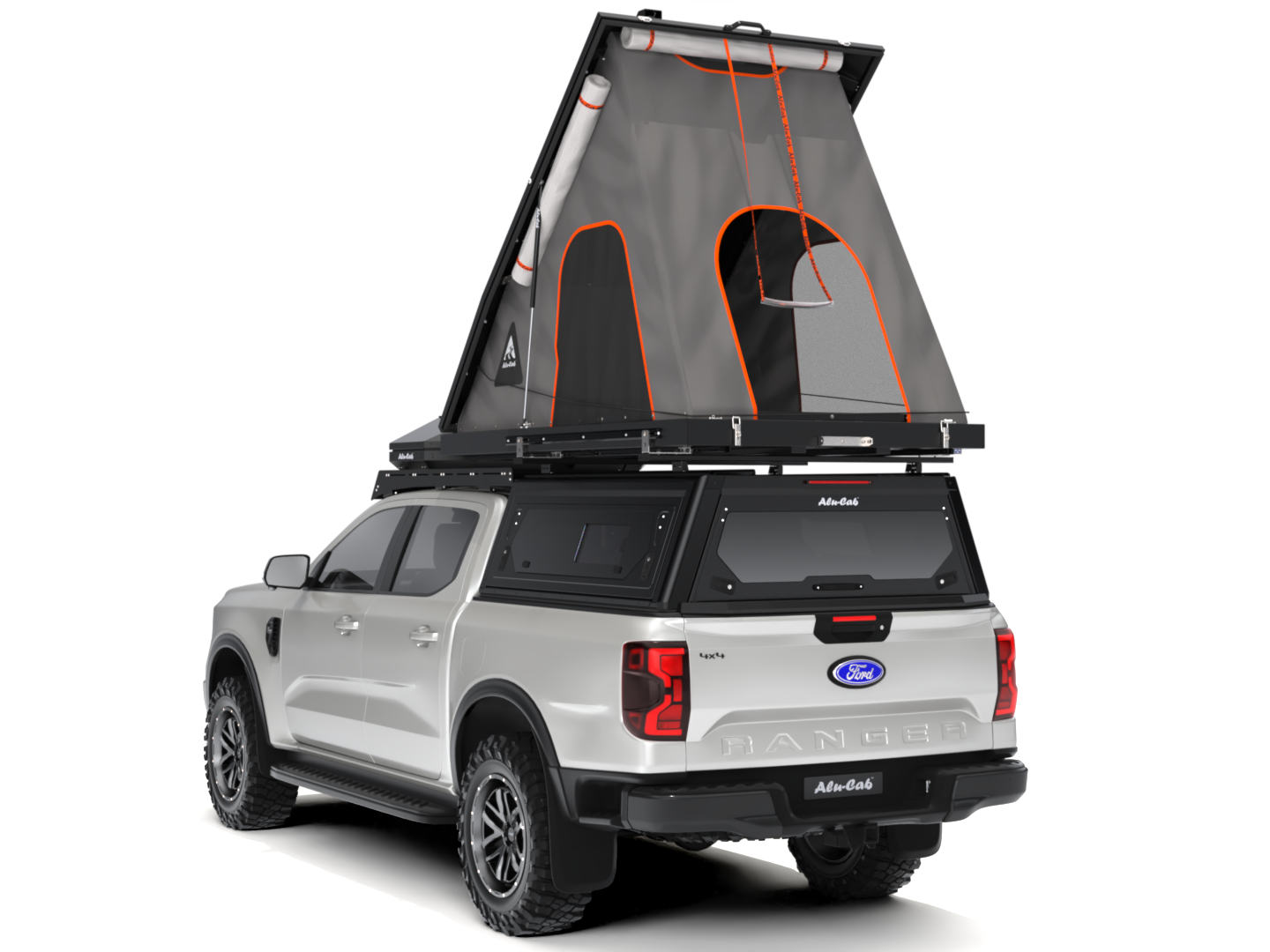

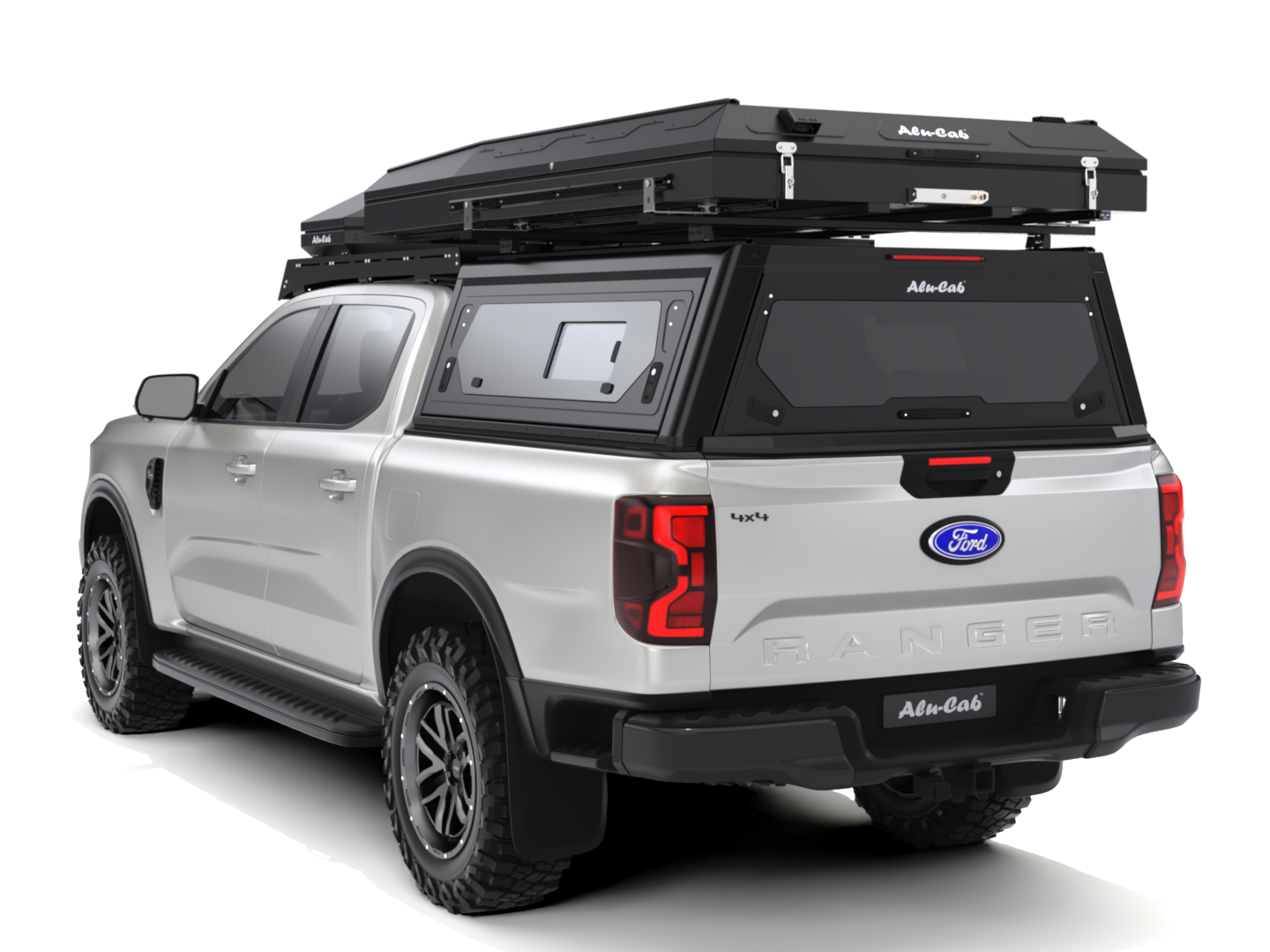

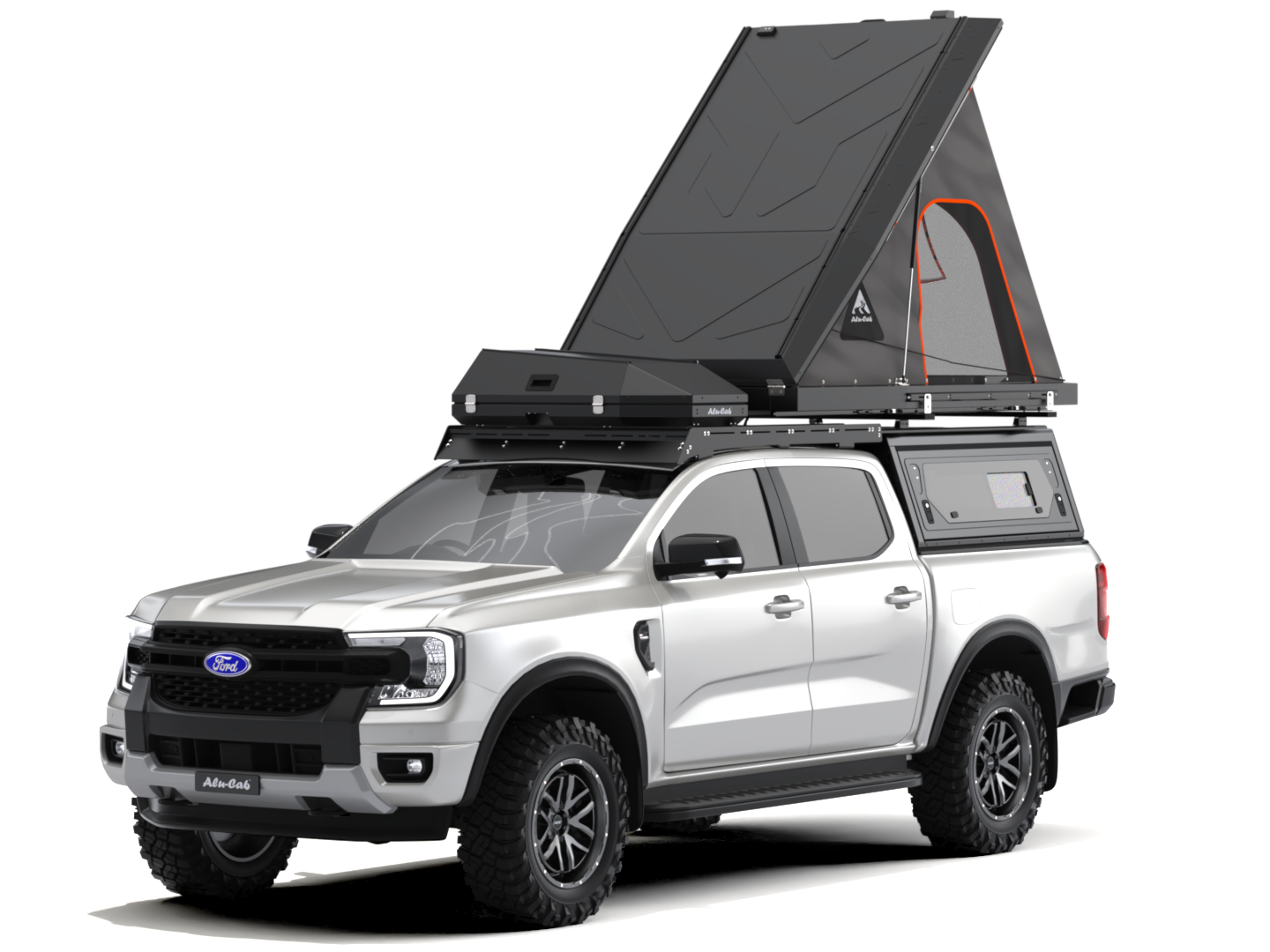

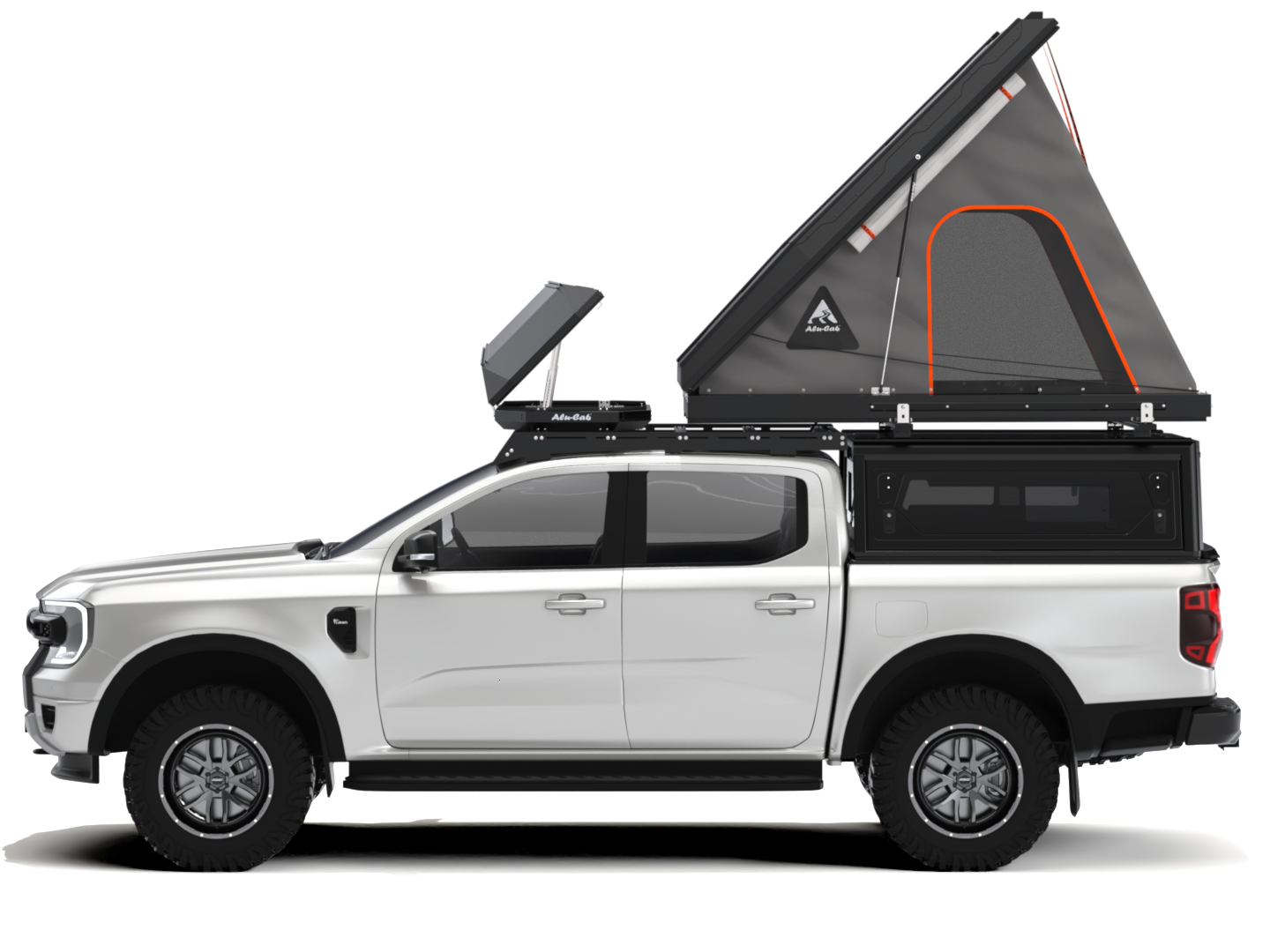

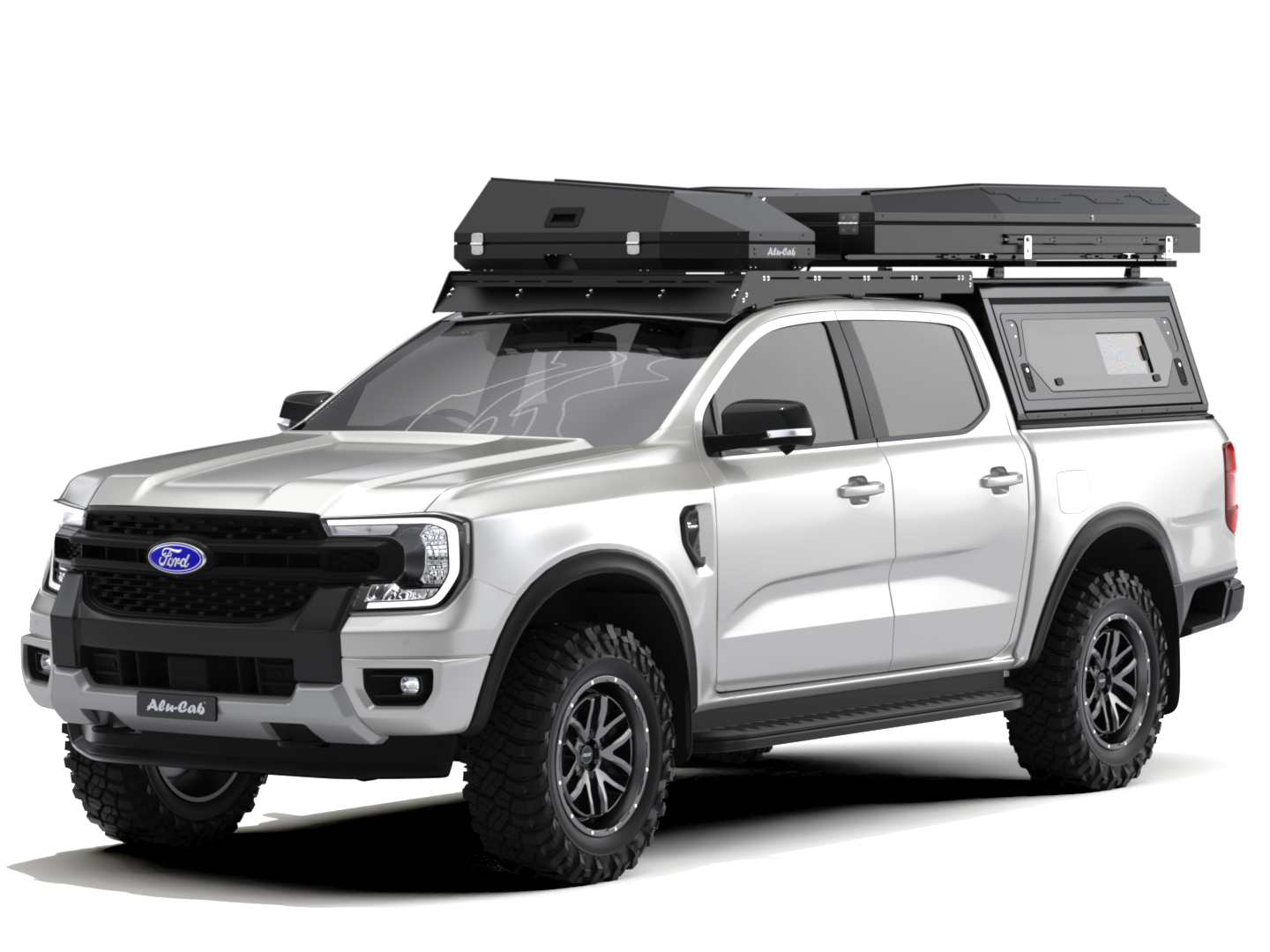

The Gen 3-R is our most advanced expedition tent – built for serious travel and effortless setup. Its low-profile, solar-ready shell is sleek and aerodynamic, while the insulated interior helps maintain a comfortable climate, no matter the conditions. Integrated LED lighting and USB-C ports add next-level convenience and there’s room to leave your bedding inside, so it’s ready to deploy the moment you park.



Why the Gen 3-R?
Because comfort shouldn’t be a compromise. The Gen 3-R offers expedition-grade durability with real-world usability – ideal for adventurers who want fast setup, smart storage and all-season performance without sacrificing modern comforts.



Tent Structure & Materials:

Construction: Lightweight aluminium frame

Shell: Hard-shell design for gear storage (kayaks, solar panels, etc.)

Fabric: Double-layer 400gsm Canvas

Hydrostatic Head Rating: >1000mm

Aerodynamics: Streamlined profile for wind resistance

Opening Mechanism: Gas-strut assisted pop-up design

Rooftop Load Rating: 50 kg (cargo rails)



Interior & Comfort:

Mattress: 70mm high-density foam with zip-off cover

Ventilation: Raised air vent and 3D breathable mesh under-mattress

Access: 3-point access (door/window on each side) with single zip opening

Awning: Zippable rear awning for weather protection

Ladder: Quick-release spec-built telescopic ladder with wide, angled rungs that can be stowed inside your tent

Storage: Internal storage pockets

Power: Internal USB and Type C power points

Lighting: Internal lighting

Insulation: Top and bottom high-density closed-cell foam insulation



Additional Features:

Rain Cover: Included as a standard feature

Cargo Rails: Full-length for maximizing additional storage space

Spring Pole Eyelets: Stainless steel for extra stability



Product SKU:

RT-R-B

Dimensions

Roof Closed:

Interior: 2100mm [L] x 1300mm [W]

Exterior: 2300mm [L] x 1400mm [W] x 210mm (front) / 280mm (rear) [H]



Roof Open:

Interior: 2100mm [L] x 1300mm [W] x 1600mm [H]

Exterior: 2300mm [L] x 1400mm [W] x 2000m [H]



Weight: Excluding Mattress & Ladder: ± 76 kg | ± 167.5 lbs



Mattress Weight: 3 kg | 7 lbs

Brochures

Instructions

Diagrams

Videos

Gen 3-R Walkthrough 20/11/2024
Gen 3-R vs LT-50 20/11/2024
7 reasons to buy a Gen 3-R 20/11/2024
Gen 3-R Walkthrough 2 20/11/2024

Compatible Brackets

No compatible brackets
