Information
-
All-Aluminium + Fully Welded -
Easy Installation – Fast, no-drill mounting -
Available in tread and smooth -
Weighs just 60 kg | 152 lbs

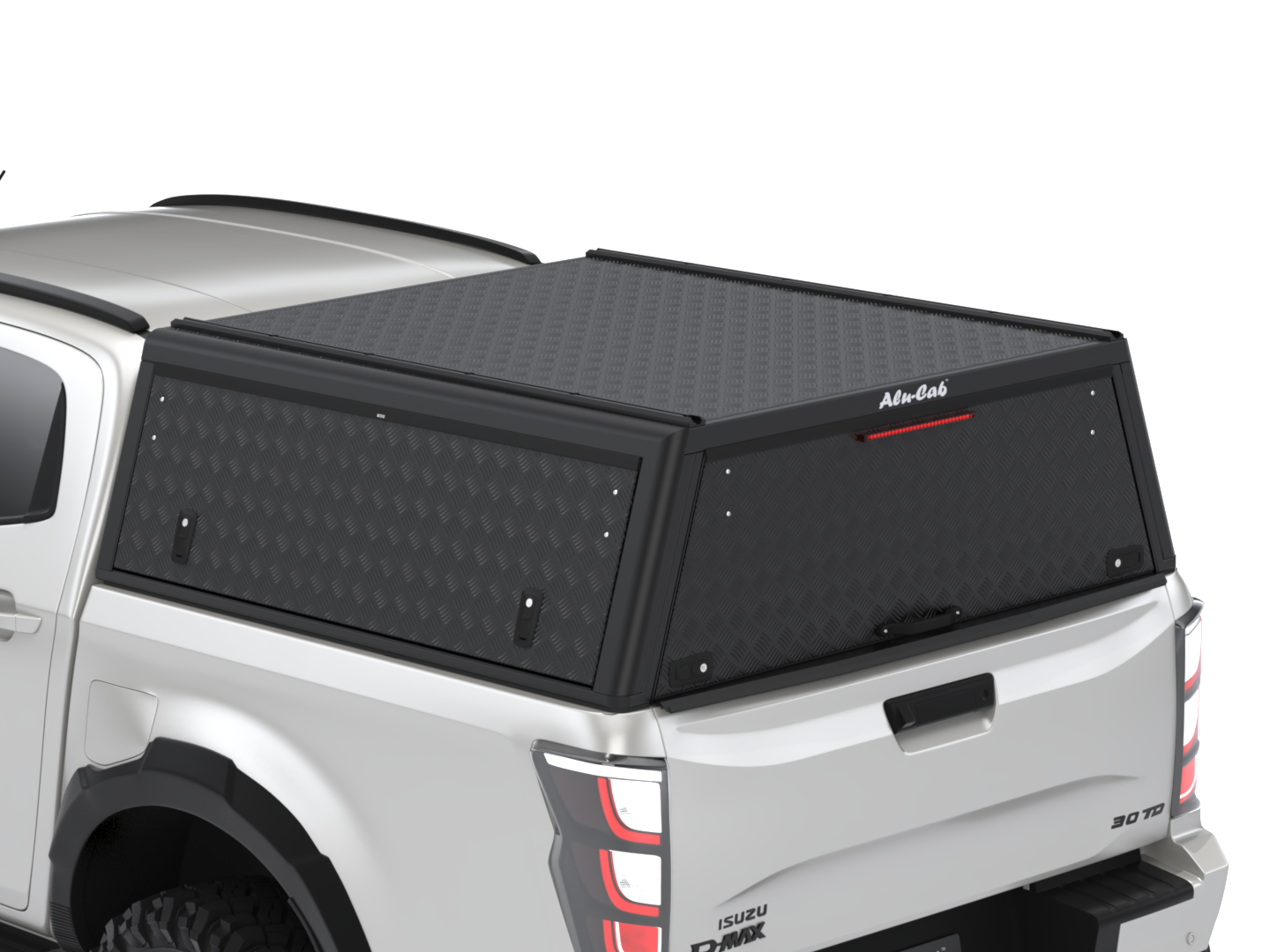

A new all-aluminium offering based on the legendary Explorer Canopy, the Explorer Guard Canopy is built solid to protect your gear from prying eyes and the elements. Engineered to handle the worst of the job site or the most action-packed lifestyle, it offers formidable protection while still being light on your truck and pocket.
Why the Explorer Guard Canopy?
Engineered for the tradesman who needs a secure, lockable space for tools, as well as the outdoor enthusiast wanting to haul everything from bikes to boards – the Explorer Guard Canopy offers unmatched security.
By simplifying the design, we’ve created a more competitively priced canopy, too. Then, because it’s built solid, it’s quick to fit with strong structural integrity. Installation takes just 45 minutes, with zero drilling!
While fibreglass cracks under heavy loads, steel weighs down a rig, and modular canopies are prone to leaks, the Explorer Guard solves all of these pain points. It’s the ultimate in protection!
For the best possible installation, please note that our mounting hardware is designed to connect directly to your truck bed. To avoid any issues and keep your warranty valid, please remove or modify your bed liner to allow for direct mounting.
Interior Accessories
- Kitchen Cupboard – C-A-KKIT
- Standard 1250mm Cupboard (Black) – C-A-CB1250-B
- Double Drawer 1450 – DS-D-1450
- Tilting Fridge Slide (60L, 65L, 70L) – DS-TFS-60-B
- 2 Chair Carrier & Recovery Grid – C-A-SC
- Ammo Box Slide – C-A-AMO-SLIDE
- Table Slide Bracket (Excl. Table) – C-A-TBL-BKT
- Security Window Grid (Rear Door, 400mm gas stay) – C-A-WG-4009
- Alu-Table (Excl. Slide) – C-A-TBL
Exterior Accessories
- Jerry Can Holder – Gen 2 Universal – C-A-JCH-U
- Can Crusher – A-CRUSHER
- Large Roof Box (Black Only) – A-RB-LB
- Side-Slide Prep Table – C-A-SSP-TBL
- Gen 3-R Expedition Tent – Black – RT-R-B
- Shower Cube (Incl. Curtain) – SH-SC
- 270° Shadow Awning – RHS – AWN-RHS
- Shadow Awning Gutter – AWN-A-GUTTER
- Side Wall Kit – RHS – AWN-RHS-SIDE
- Lightweight Rooftop Tent Weekender – Black – RT-L-WKND
- Spare Wheel Bag – Large – A-SPWB-L
- Roof Rack Tray – A-LB-RT
| Vehicle | Smooth | Tread |
| Ford Ranger Double Cab T6 | C-D-FR12-E-BS-ZW | C-D-FR12-E-BT-ZW |

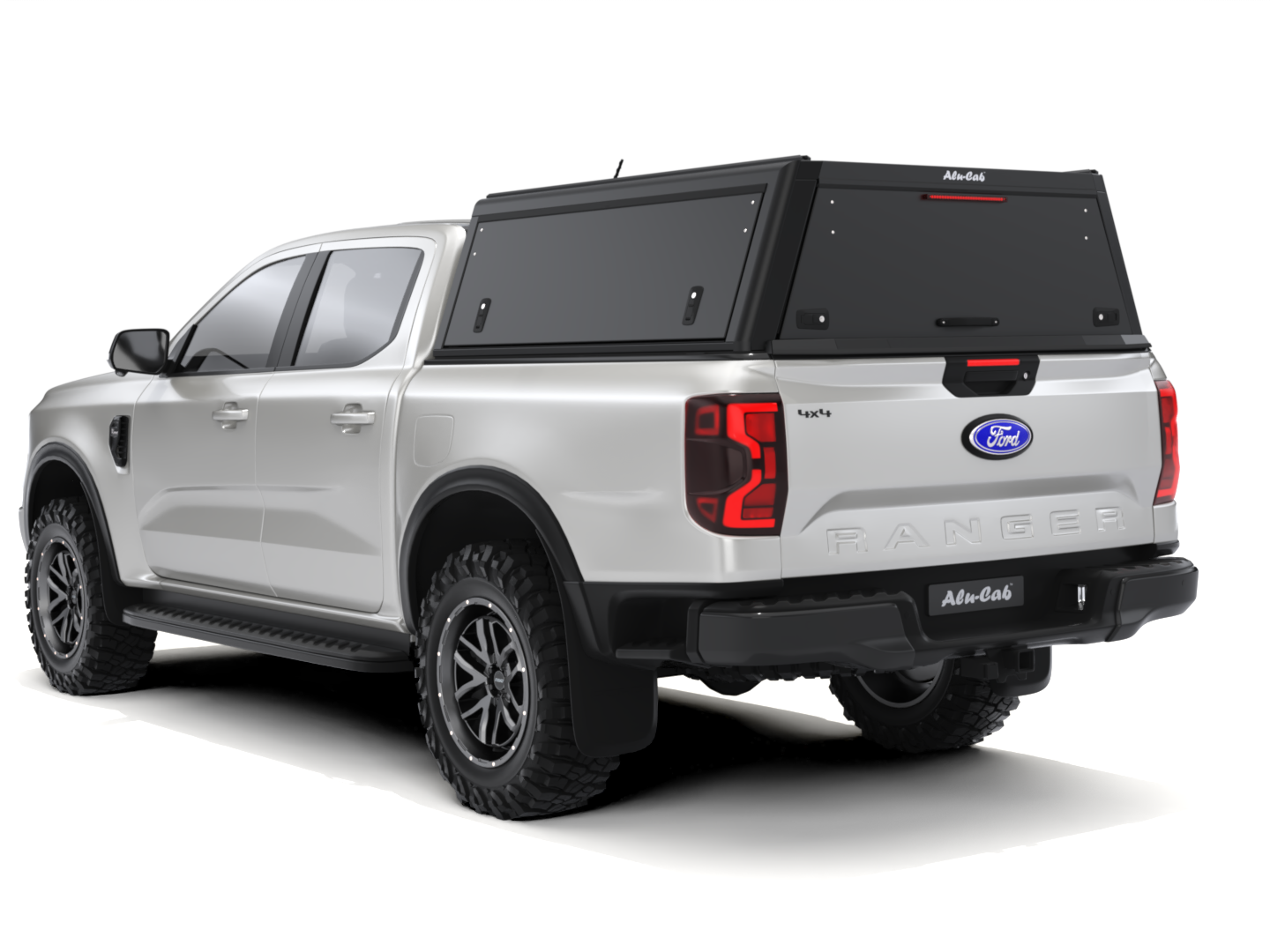

| Ford Ranger Double Cab 2022+ | C-D-FR22-E-BS-ZW | C-D-FR22-E-BT-ZW |
| Ford Ranger Single Cab 2022+ | C-S-FR22-E-BS-ZW | C-S-FR22-E-BT-ZW |
| Toyota Hilux Revo Double Cab 2016+ | C-D-TH16-E-BS-ZW | C-D-TH16-E-BT-ZW |
| Toyota Hilux Revo Extended Cab 2016+ | C-X-TH16-E-BS-ZW | C-X-TH16-E-BT-ZW |

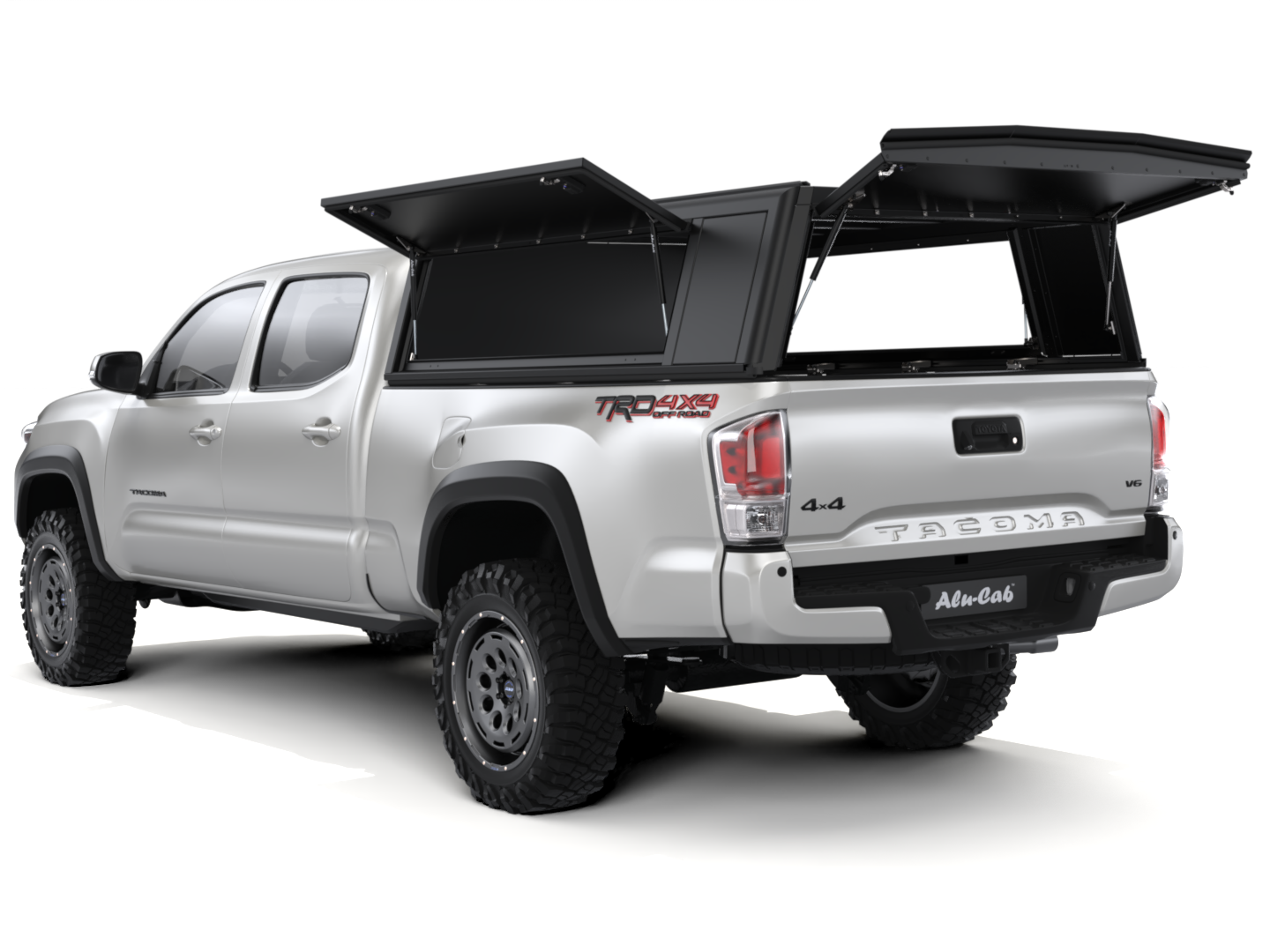

| Toyota Tacoma LB 2016+ | C-LB-TT16-E-BS-ZW | C-LB-TT16-E-BT-ZW |
| Toyota Tacoma SB 2016+ | C-SB-TT16-E-BS-ZW | C-SB-TT16-E-BT-ZW |

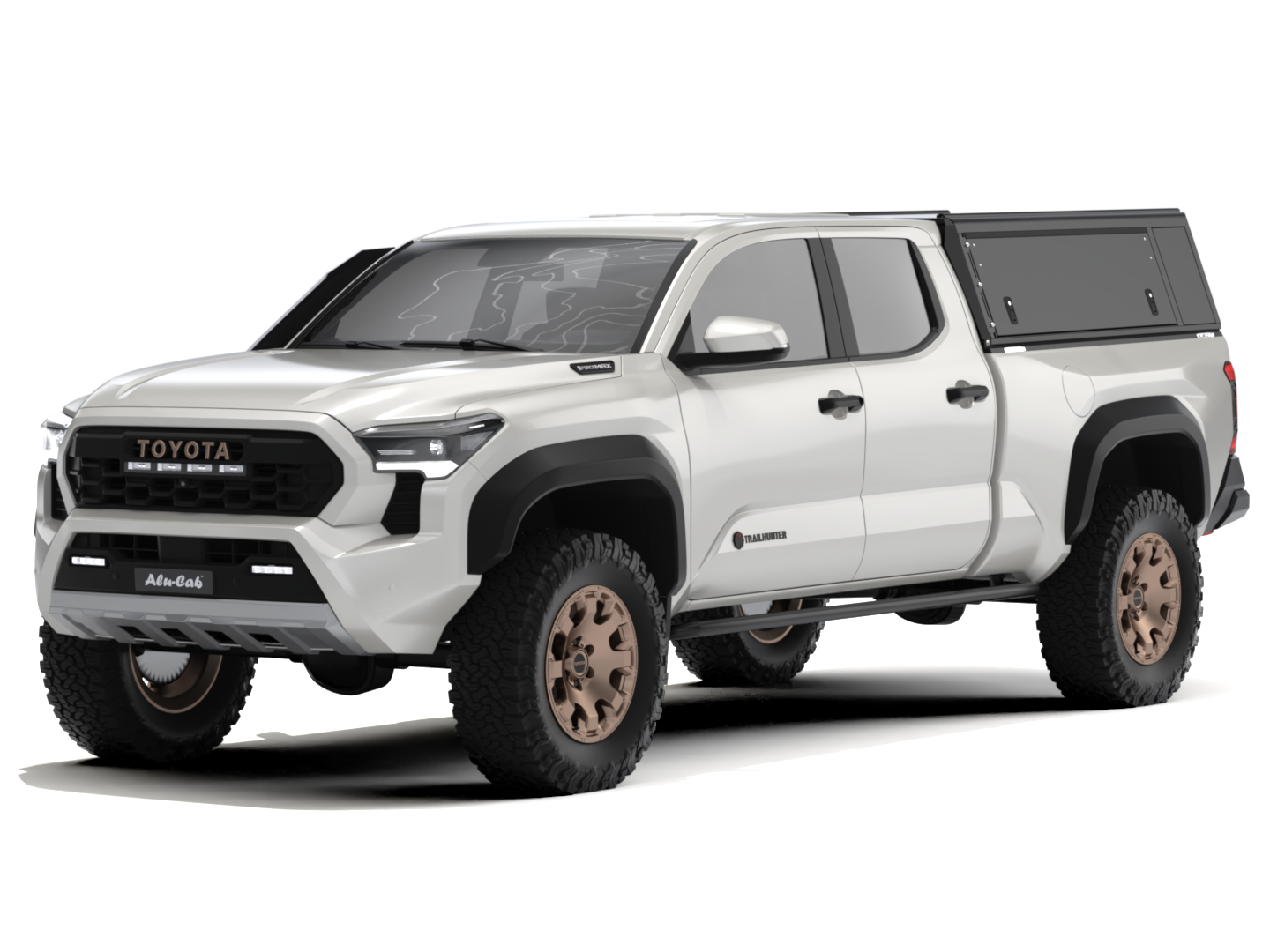

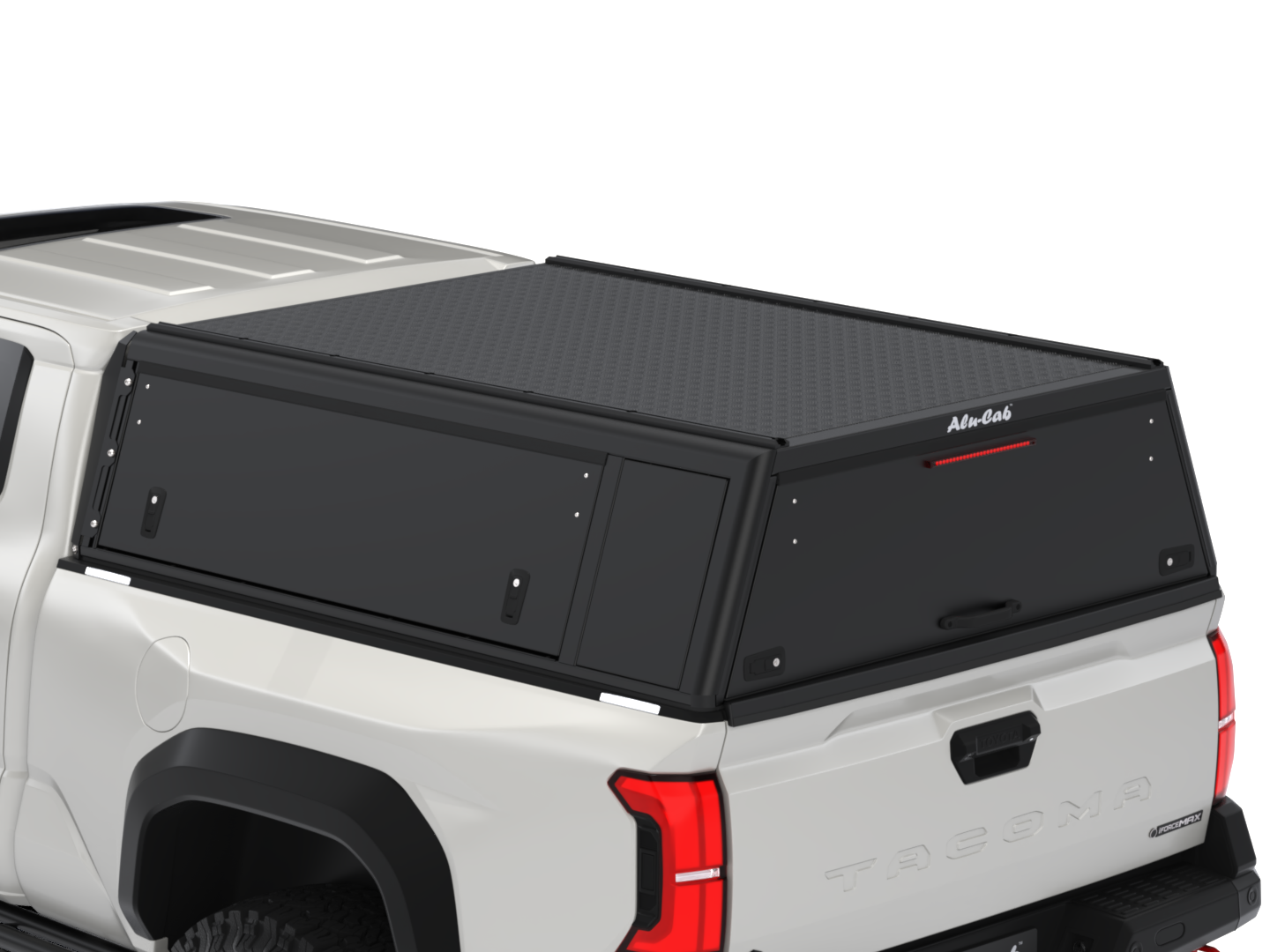

| Toyota Tacoma LB 2024+ | C-LB-TT24-E-BS-ZW | C-LB-TT24-E-BT-ZW |
| Toyota Tacoma SB 2024+ | C-SB-TT24-E-BS-ZW | C-SB-TT24-E-BT-ZW |
| Toyota Tundra FSL 2022+ | C-FSL-TUN22-E-BS-ZW | C-FSL-TUN22-E-BT-ZW |

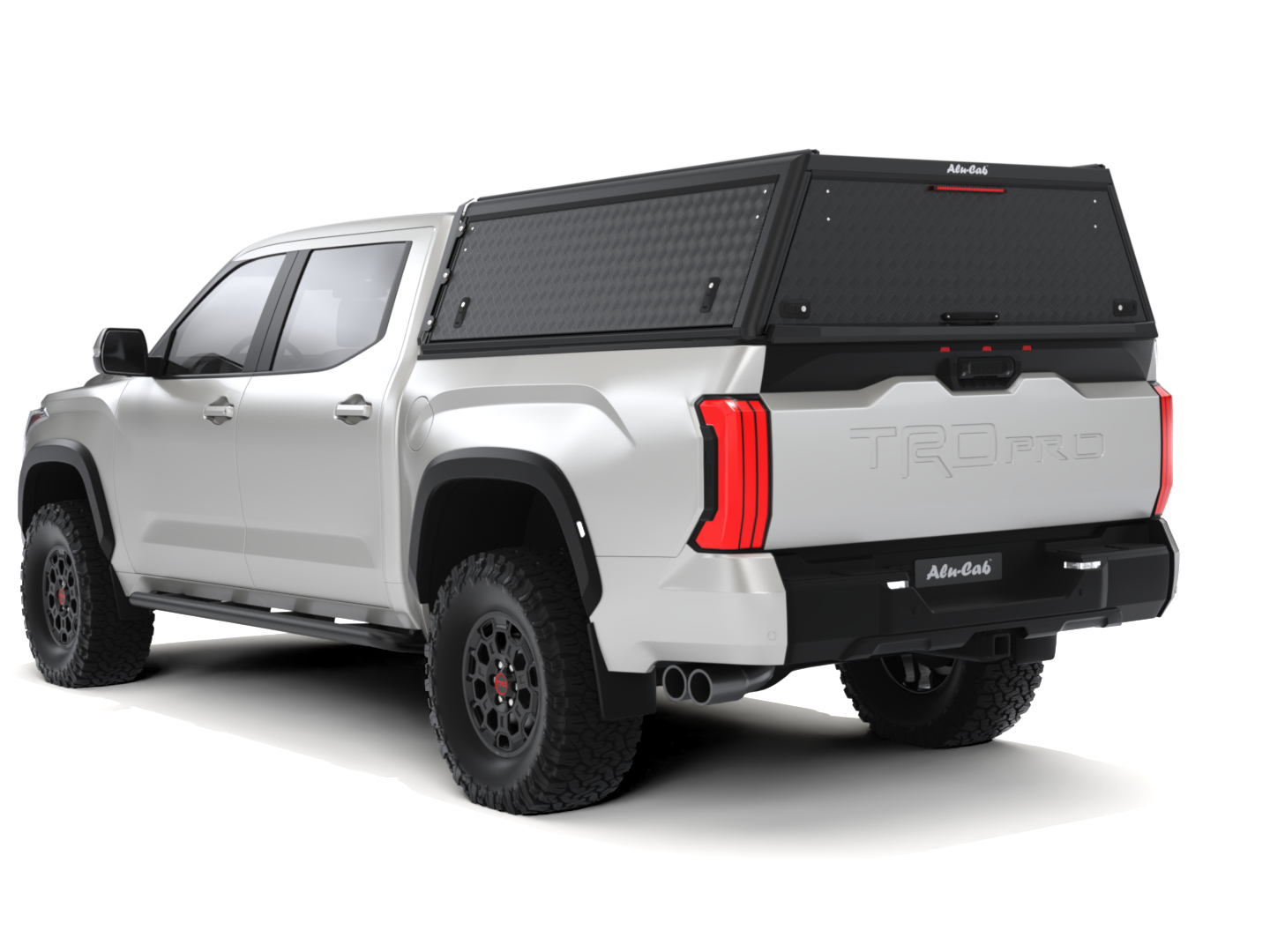

| Toyota Tundra FSS 2022+ | C-FSS-TUN22-E-BS-ZW | C-FSS-TUN22-E-BT-ZW |
| Isuzu KB Double Cab 2012+ | C-D-IZ12-E-BS-ZW | C-D-IZ12-E-BT-ZW |

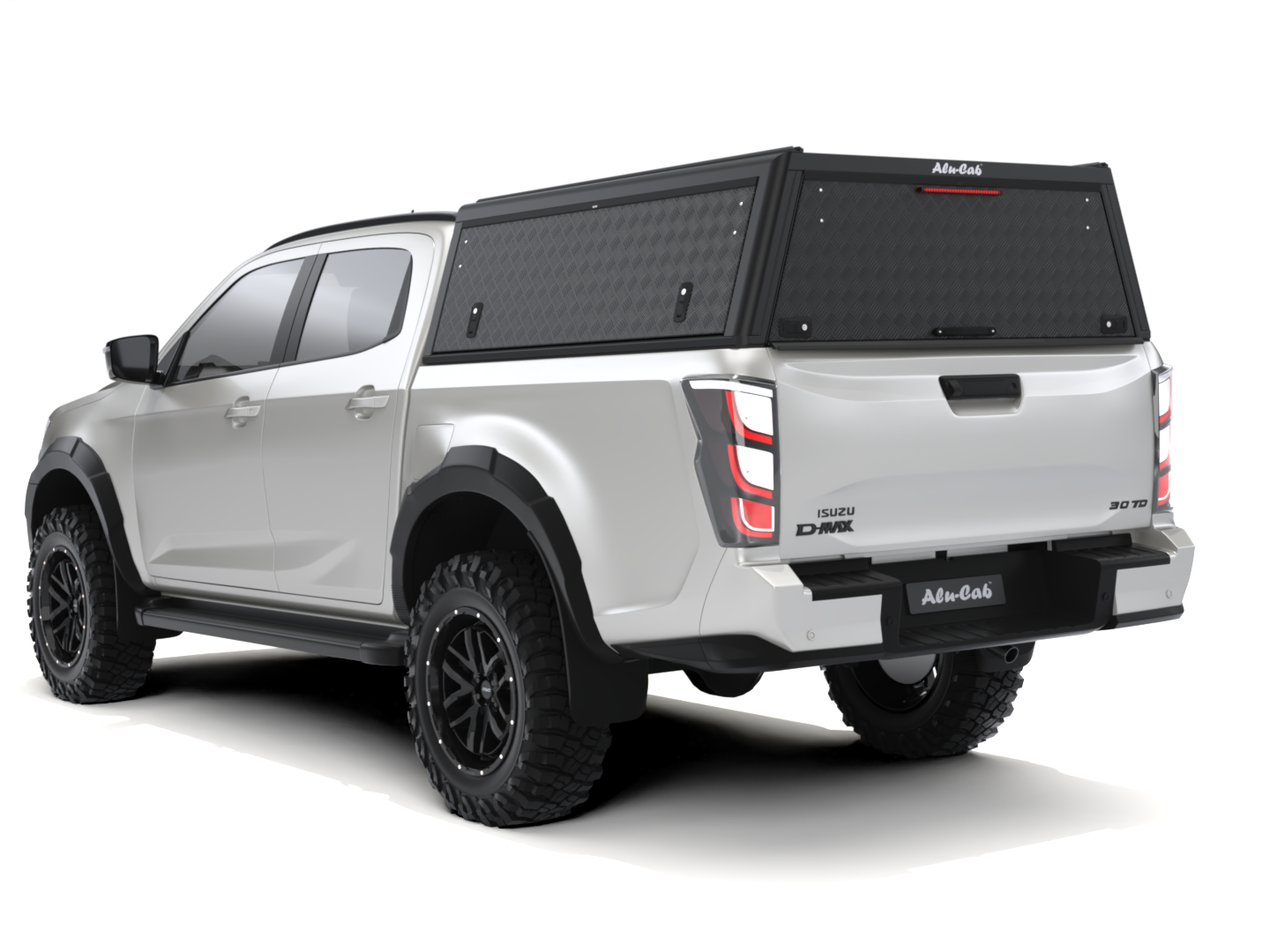

| Isuzu D-Max Double Cab 2020+ | C-D-IZ20-E-BS-V2-ZW | C-D-IZ20-E-BT-V2-ZW |
Dimensions
No product information available
Brochures
No brochures available
Instructions
No instructions available
Diagrams
No diagrams available
Videos
No videos available
Compatible Brackets
No compatible brackets
Optional Extras
